Reports and Data

Run the MetaMiner standard report pack, query the MetaMiner Database (MMDB) directly, and find the SQL scripts and monitoring dashboards that ship with MetaMiner.

The standard report pack is a set of 22 Web Intelligence documents that read the metadata MetaMiner collects from your BusinessObjects environments. Each report page lists what the report answers, its tabs, columns, prompts, input controls and drill links.

Standard report catalog

Report codes start with the family letter: A (audit), W (Web Intelligence), C (Crystal Reports), D (documents), U (universe) and S (server). In BI launch pad each document name starts with its code, for example [MM-A01] Audit - Object Activity Summary.

Audit reports (A)

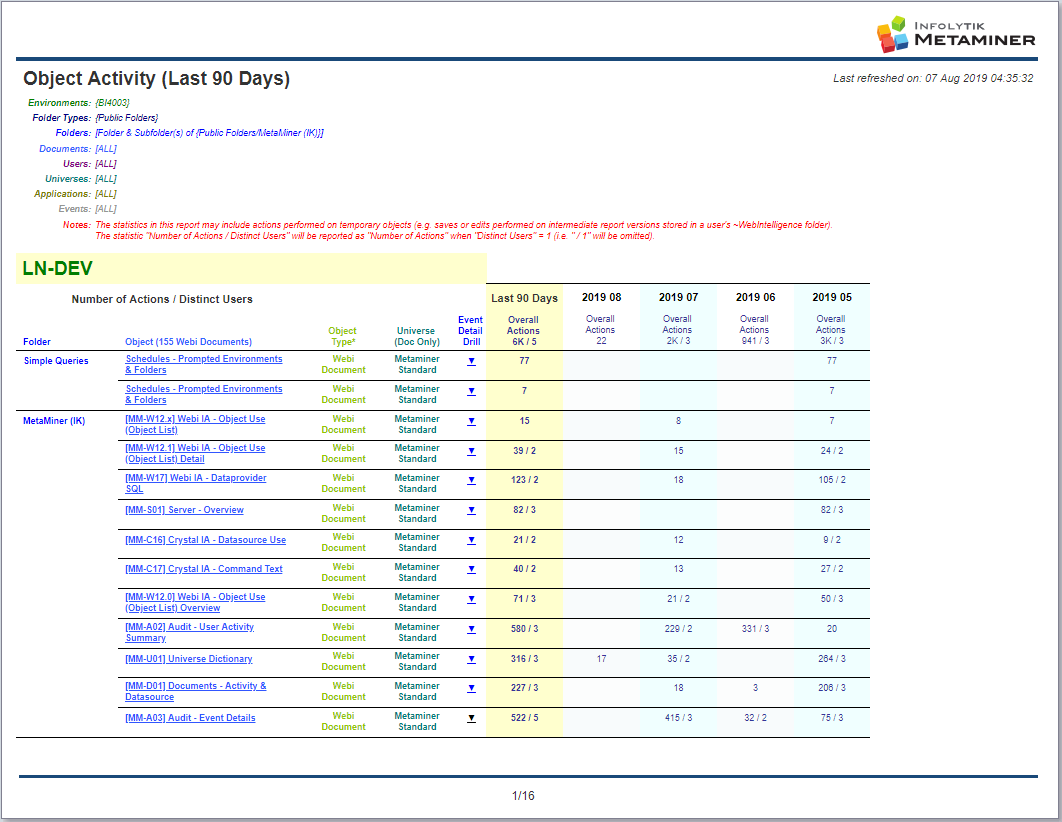

Who did what, when: activity per object, per user and per event, from the BusinessObjects audit data MetaMiner collects.

Web Intelligence reports (W)

Where universe objects are used inside Web Intelligence documents, the SQL each data provider sends, and query time and row counts.

  • [MM-W10] Object Use Overview

    Shows which universe objects and other data source objects are used in which Web Intelligence documents, and how often.

  • [MM-W11] Object Use per Object

    Shows, object by object, which Web Intelligence documents and data providers use each universe object.

  • [MM-W12] Object Use Detail

    Shows every place a universe object is used inside Web Intelligence documents: report tab, element, variable and expression.

  • [MM-W17] Data Provider SQL

    Lists the SQL of each Web Intelligence data provider, with row counts and refresh times, and finds documents whose SQL contains a search term.

  • [MM-W20] Query Time and Rows

    Shows the query time and row count of each Web Intelligence data provider, and the database tables and columns its SQL uses.

Crystal Reports reports (C)

Business Views, prompt groups, tables, fields, database users, servers and command text used by Crystal Reports.

Documents reports (D)

Documents of every type with their data sources and last activity.

Universe reports (U)

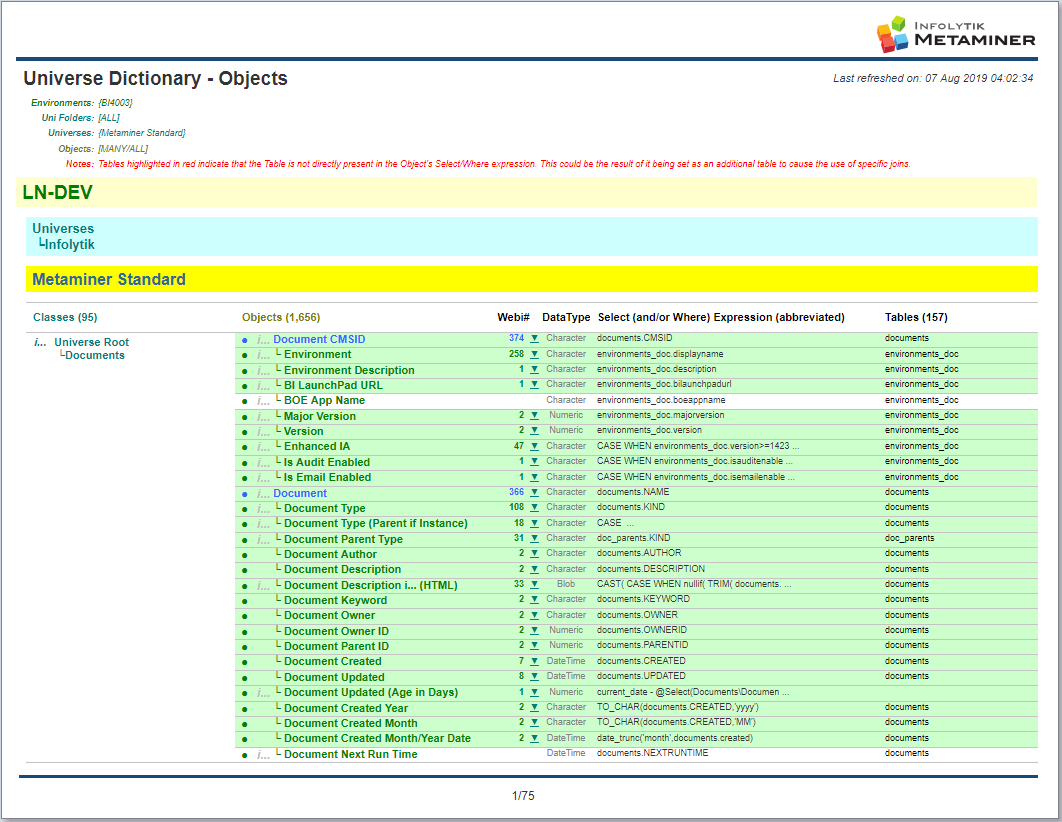

Universe dictionary and unused universe objects.

Server reports (S)

Server status, configuration and metrics.

  • [MM-S01] Server Overview

    Shows the status, configuration settings and latest metrics of the servers in your BusinessObjects environments.

Data and catalogs

Pulse monitoring

  • Introduction

    The Grafana-based Pulse dashboards and how they relate to the newer Monitor web app.

  • Server Monitoring Dashboards

    The dashboards Pulse provides for BusinessObjects servers, sessions and scheduling.

  • Pulse Alerting

    Threshold alerts in Pulse, and when to use MetaMiner Alerts instead.

How the reports are delivered

The standard reports are Web Intelligence documents built on the MetaMiner Standard universe, a UNX universe over the MMDB. You import them into a BusinessObjects environment and refresh them like any other document.

TODO: confirm how the standard report pack is distributed

The server installer ships only the universe, as server\support\MetaMiner Standard Universe_16_MAY_2021-LATEST.lcmbiar; the 22 report documents are not in the installer. Confirm whether the report pack is a separate LCMBIAR supplied by Infolytik Support, and its file name.

To make the reports work:

  1. Install the MetaMiner Standard Universe and its PostgreSQL connection.
  2. Import the report pack into the same environment with Promotion Management in the Central Management Console (CMC).
  3. Make sure MetaMiner collects the data each report family reads:
Report family Data MetaMiner must collect Where to set it
Audit (MM-A01 to MM-A03) Audit events from the BusinessObjects audit database Audit and CMS Databases, Audit settings
Web Intelligence (MM-W10 to MM-W20) Web Intelligence document processing Document Processing
Crystal Reports (MM-C11 to MM-C17) Crystal Reports document processing Document Processing
Documents (MM-D01) Documents, plus Web Intelligence and Crystal Reports processing and audit data Document Processing
Universe (MM-U01 to MM-U13) Universe processing, plus Web Intelligence processing for object use Document Processing
Server (MM-S01) Server status, configuration and metrics (Pull Server Metrics) Pull settings

TODO: confirm the Web Intelligence and universe reports with REST-based document processing

MM-W10 to MM-W20, MM-U01, MM-U10 to MM-U13 and MM-D01 read the Web Intelligence detail written by the default (SDK-based) document processing. Confirm whether they show documents when an environment uses REST-based Web Intelligence processing instead.

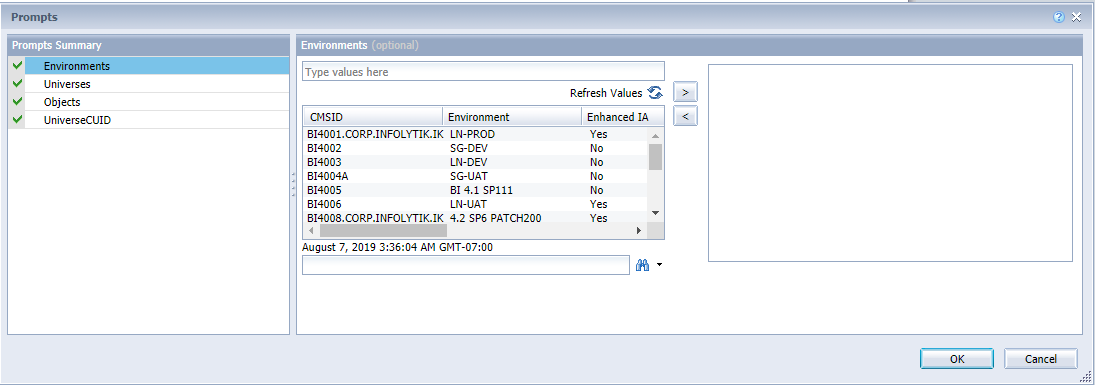

Common prompts

Most reports share a cascading set of prompts: each prompt limits the list of values of the next one. Leave an optional prompt empty to include everything.

Prompt Answer Behaviour
Environments Optional, pick one or more Lists the CMSIDs of your environments with their description. In every report.
FolderTypes Optional, pick one or more In document-based reports. Cascades from Environments.
FolderPath Required, one value In document-based reports. Matched with LIKE; % includes all folders.
Folders Optional, pick one or more In document-based reports. Lists folders that match the prompts above.
Universes Optional, pick one or more In universe and some Web Intelligence reports. Lists the universes of the selected environments.
Include MetaMinerAdmin Ids Required, one value In the audit reports. No leaves out audit events caused by the MetaMiner account.
AuditObjectCUIDs, DocumentCUIDs, UniverseCUID Optional Filled in by drill links between reports. Leave empty when you refresh a report yourself.

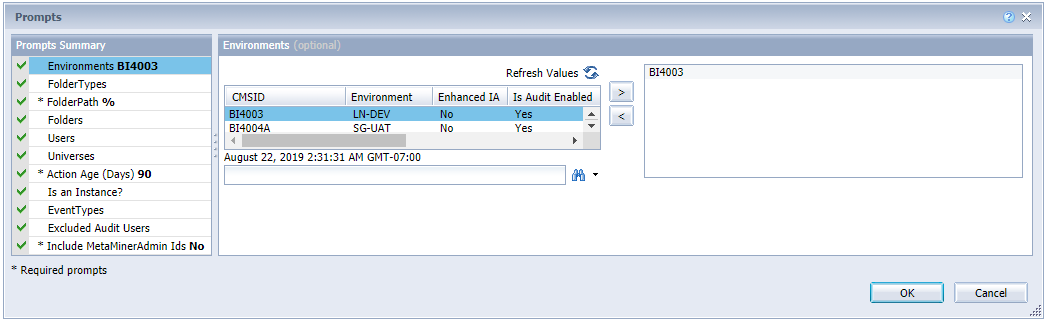

Image of the Prompts dialog of MM-A01 with the Environments, FolderTypes, FolderPath and Folders cascade

../images/reports/common-prompts.png

Legacy image for reference: images/mmsr_prompt_MM-A01.png

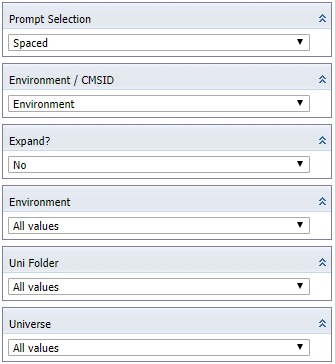

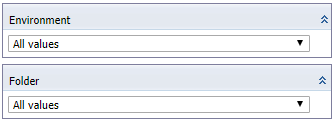

Common input controls

Every report has display controls that change how it shows its data, and filter controls that narrow the rows. Each report page lists its own set.

Input control What it does
Prompt Selection Shows or hides the block under the header that lists your prompt answers. Spaced (default), Show or Hide.
Environment / CMSID Shows environments in the report body by display name or by CMSID. Filters and prompts always list CMSIDs.
Folder / Complete Shows the folder name or the complete folder path.
Number Format Switches large numbers to a short format, for example K for 1,000s.
Expand, Expand? Shows long multi-value fields in full, or shortens them to one row.
Environment, Folder, Universe, Document Filter the rows to the values you pick.

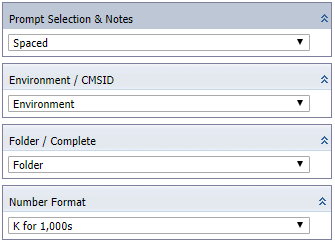

Image of the Input Controls panel of MM-A01

../images/reports/common-input-controls.png

Legacy image for reference: images/mmsr_ICs_CommonSet1.png

Many reports carry links that open a related report with the prompts already answered: for example from an object in MM-A01 to its events in MM-A03, or from a universe in MM-U10 to its unused objects in MM-U11 or MM-U12. Each report page lists its drill links.

TODO: confirm that drill links survive import into another environment

The drill links point to their target reports by CUID. Confirm that Promotion Management keeps the CUIDs when the pack is imported, so the links work without editing.

Chapter status

  • reports/overview.md - distribution of the report pack (file name, channel) is unconfirmed
  • reports/overview.md - Web Intelligence and universe reports with REST-based processing unconfirmed
  • MM-A01 to MM-S01 - filter input controls checked against the report variables, not by a live refresh; layout, prompt and input-control screenshots to be retaken
  • pulse/pulse-alerting-for-businessobjects.md - steps describe an older Grafana alerting interface
  • metaminer-tips/metaminer-universe-sapbi4.md - universe file date and client tool bitness need re-checking for current BusinessObjects versions
