[MM-W11] Object Use per Object¶
Shows, object by object, which Web Intelligence documents and data providers use each universe object.
Report document
Web Intelligence document [MM-W11] Webi IA - Object Use Overview (per Object) from the MetaMiner standard report pack. It reads the MetaMiner Database (MMDB) through the MetaMiner Standard universe. See Reports and Data.
What it answers¶
- For one object, which documents and data providers use it?
- Where in each document the object appears.
- Which objects are the most widely used.
Who uses it: Universe designers doing impact analysis on specific objects.
Report tabs¶
| Tab | Shows |
|---|---|
| Webi IA - Object Use Summary (per Object) | One section per object, with the documents that use it. |
Image of MM-W11 refreshed for one environment, Webi IA - Object Use Summary (per Object) tab
../images/reports/mm-w11-layout.png

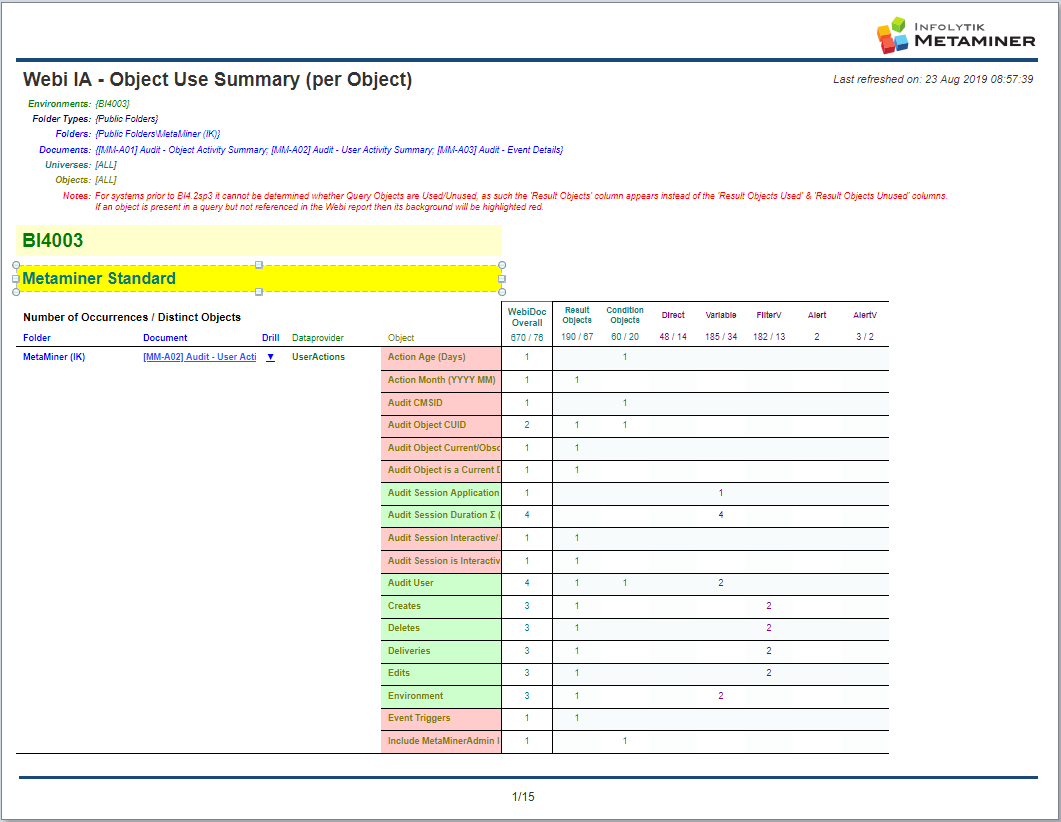

Legacy image for reference: images/mmsr_layout_MM-W11.png
Columns and measures¶
| Group | Columns |
|---|---|
| Object | Class, Object, Object ID, Location |
| Document | Environment, Document, Dataprovider, Folder Type, Folder Name, Folder Path Complete |
| Data source | DP Type, Datasource, Universe CUID, Universe Unbound |
| Measures | Nbr Objects, Nbr Occurances |
Prompts¶
| Prompt | Required | Answer | What it does |
|---|---|---|---|
| Environments | No | Pick one or more | Environments to include, listed by CMSID with their description. Leave empty for all. The prompts below list only values from the environments you pick. |
| FolderTypes | No | Pick one or more | Folder types to include. |
| FolderPath | Yes | Pick one | Folder path pattern, matched with LIKE. Enter % for all folders. |
| Folders | No | Pick one or more | Folders to include. The list depends on the prompts above. |
| Documents | No | Pick one or more | Documents to include. |
| Objects | No | Pick one or more | Universe objects to include. |
| Universes | No | Pick one or more | Universes to include. |

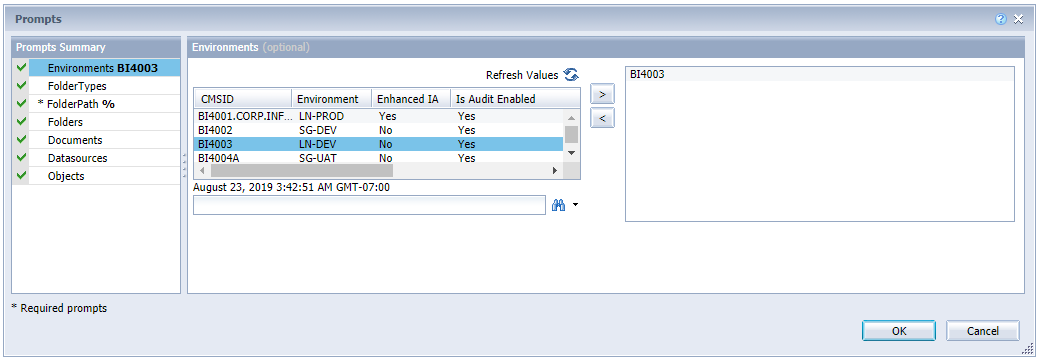

Image of the MM-W11 Prompts dialog with Environments answered
../images/reports/mm-w11-prompts.png
Input controls¶
Display controls change how the report shows its data:
| Input control | What it does |
|---|---|
| Prompt Selection | Shows or hides the block under the header that lists your prompt answers. Spaced (default) shows it with a space between list items, Show shows it without spacing, Hide hides it. |
| Environment / CMSID | Shows environments in the report body by display name or by CMSID. Filters and prompts always list CMSIDs. |
| Folder / Complete | Shows the folder name or the complete folder path. |
| Number Format | Switches large numbers to a short format, for example K for 1,000s. |
Filter controls keep only the rows that match the values you pick: Environment, Folder, Document, DP Type, Location, Datasource, Object.
Image of the MM-W11 Input Controls panel
../images/reports/mm-w11-input-controls.png

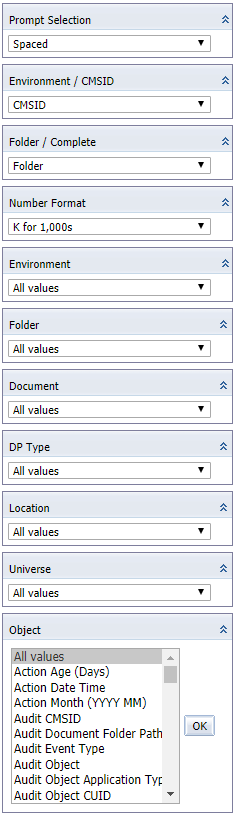

Legacy image for reference: images/mmsr_ICs_W11.png
Drill links¶
| Link | Opens |
|---|---|
| Document name | Opens the document in BI launch pad. |
| Document drill | Opens [MM-W12] Object Use Detail for that document. |
| Universe drill | Opens [MM-U11] Unused Objects UNV or [MM-U12] Unused Objects UNX for that universe. |
A drill link opens the target report through BI launch pad OpenDocument and passes the environment and the selected item as prompt answers.
Run the report¶
- In BI launch pad, open
[MM-W11] Webi IA - Object Use Overview (per Object)from the folder where you imported the standard report pack. - Refresh the document and answer the prompts. Keep FolderPath at
%to include all folders. - Use the input controls to change the display or narrow the results.
Data it needs: Web Intelligence document processing (data providers, queries, report elements and variables of each document). See Document Processing.
Related reports¶
- [MM-W10] Object Use Overview - shows which universe objects and other data source objects are used in which Web Intelligence documents, and how often.
- [MM-W12] Object Use Detail - shows every place a universe object is used inside Web Intelligence documents: report tab, element, variable and expression.
- [MM-U01] Universe Dictionary - describes UNV and UNX universes in full: summary, objects, joins, contexts, tables and restrictions.
- Reports and Data - all standard reports, shared prompts and delivery
