[MM-U11] Unused Objects - UNV¶

Purpose¶

The purpose of this report is to identify Objects within selected universes that are Unused across all documents.

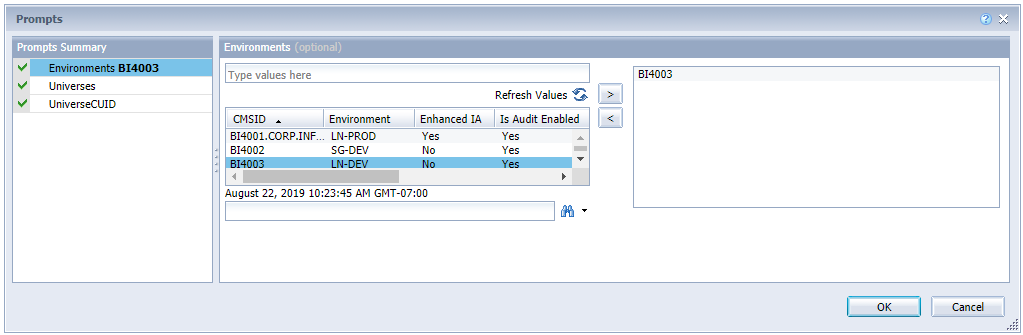

Prompts¶

Prompt_Example

Environments -> {Universes}

Environments

This optional multi-select prompt (featuring in all MMSRL reports) is often used as the parent of a cascading set of subsequent prompts. The LOV will list the CMSIDs of all available Environments. The prompt return value is CMSID, but the more descriptive Environment description along with whether the Environment supports "Enhanced IA" is also detailed in the LOV listing.

Universes

This optional multi-select prompt (featuring in "universe based" MMSRL reports) allows the user to restrict the report to the selected Universes. The LOV will list all Universes available in the Environments selected in the prompt above. Its LOV cascades from the Environments prompt so if no Environments are selected in that prompt then no LOV entries will be listed.

UniverseCUID

This optional multi-select prompt (featuring in MM-U11 & MM-U12) allows this report to be run as a hyperlinked child report, where universes of interest can be passed straight in by the parent report (via UniverseCUID), as such no LOV is provided and this prompt can be ignored in regular "Refresh on Open" use.

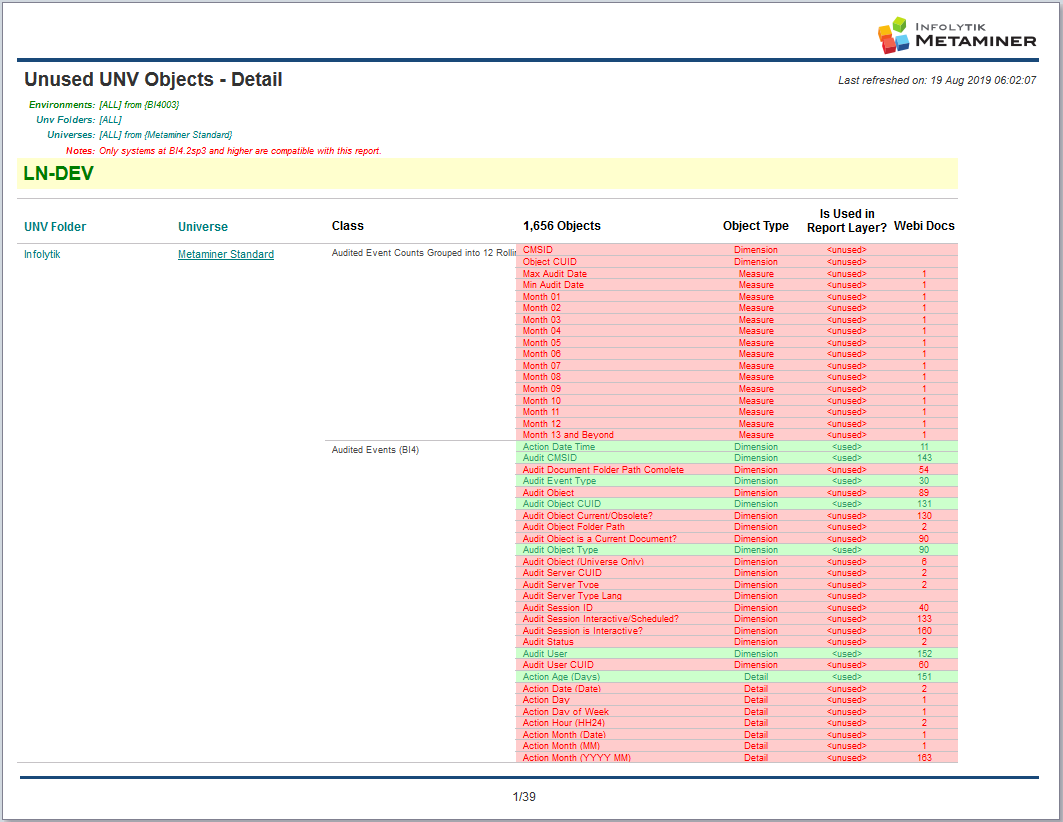

Layout¶

Layout

Hyperlinks

Universe

Opens & refreshes [MM-U13] Unused Objects - Detail (passing in UniverseCUID).

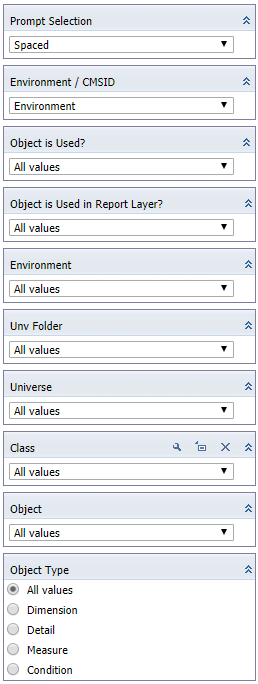

Input Controls¶

Input_Control_Example

Prompt Selection

Allows the user to reveal / hide the display of the Prompt Selection (can also include Input Control Selection too).

"Spaced" option

The default "Spaced" option reveals the Prompt Selection (below the report header), but also reformats lists to be more readable by adding a space between listed items.

"Show" option

The alternative "Show" option reveals the Prompt Selection (below the report header), without reformatting lists with a space between listed items.

"Hide" option

The "Hide" option hides the Prompt Selection.

Environment / CMSID

Allows the user to switch the display of Environment (within the report) between CMSID and CMS display name (as configured in MetaMiner Administrator).

Warning

Although this Input Control switches the display within the report's results, it does not affect what is listed in the Environment input control, which always lists CMSID. The same is true for the Environments prompt (during prompt selection) and the display of Environments (within the prompt selection block).

Object is Used?

Allows the user to filter the report results to selectively include or exclude Objects that are Used in Report Document, regardless on whether or not it is used within a document's Report Layer (within any report document in the Environment being reported against).

Object is Used in Report Layer?

Allows the user to filter the report results to selectively include or exclude Objects that are Used in Report Layer (within any report document in the Environment being reported against).

Environment

Allows the user to filter the report results to a selected CMSID.

Warning

Although this Input Control is named Environment, it always works on CMSID regardless of the prior Environment / CMSID selection.

Unv Folder

Allows the user to filter the report results to universe objects located in universes residing in the selected Unv Folder.

Universe

Allows the user to filter the report results to universe objects located in the selected Universe.

Class

Allows the user to filter the report results to universe objects located in the selected Class.

Object

Allows the user to filter the report results to the selected Object.

Object Type

Allows the user to filter the report results to the selected Object Type.
